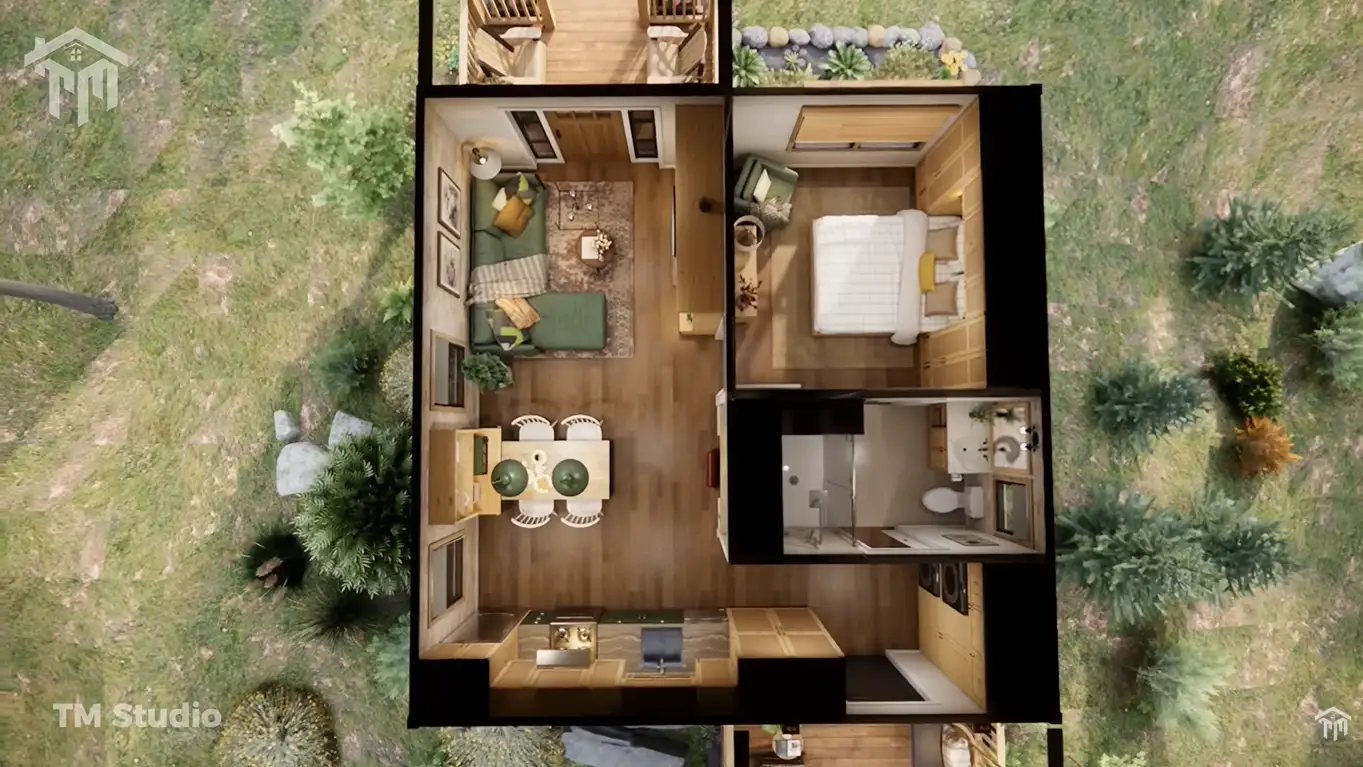

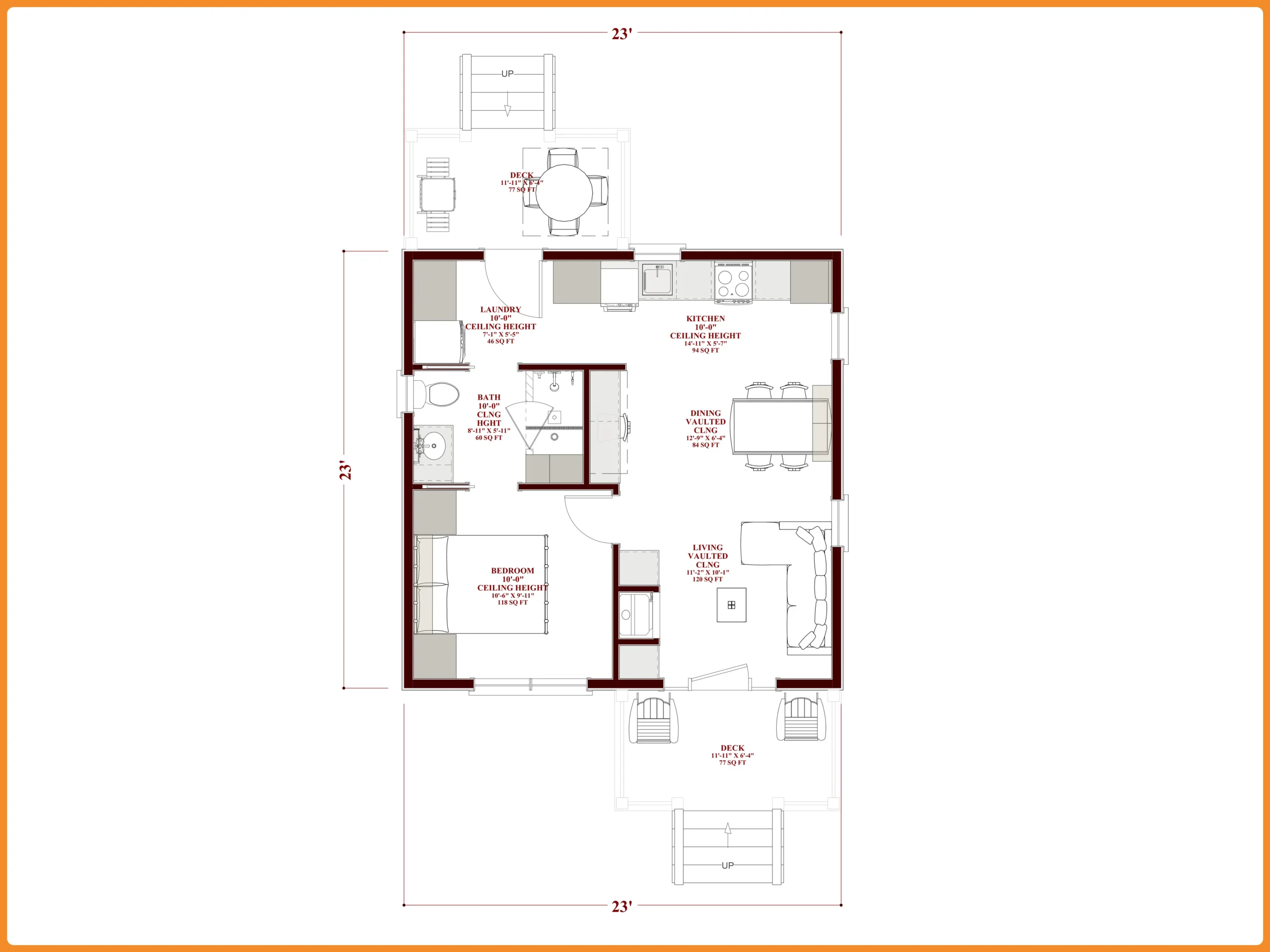

TMS-047-CF1 | 23’ x 23’ Small Cottage Cabin Floor Plan – 528 Sq Ft

If you’ve been searching for a small house design under 600 sq ft that truly feels spacious, the TMS-047-CF1 may be exactly what you need.

Designed by TM Studio-Small House Design, this 23’ x 23’ cottage-style home plan delivers smart layout efficiency, vaulted ceilings, and outdoor living — all within just 528 square feet of conditioned space.

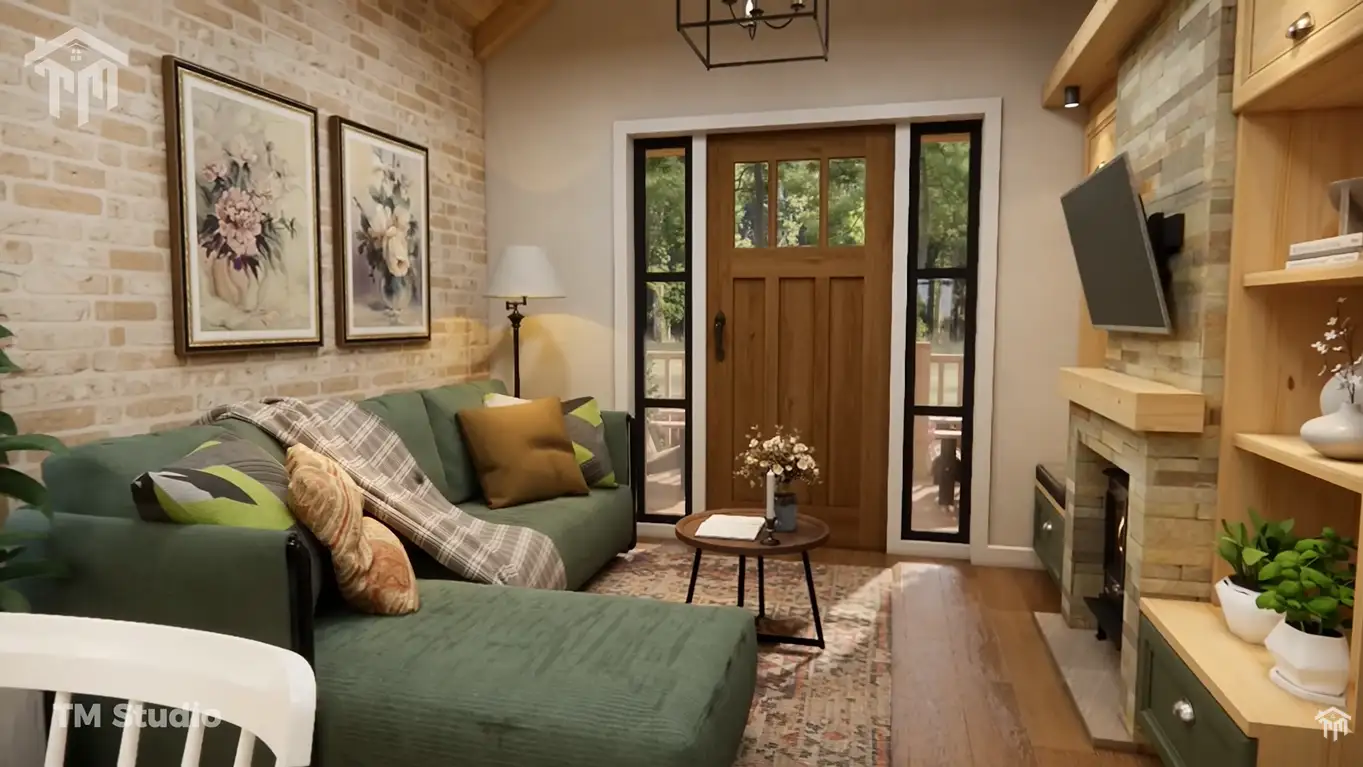

From the moment you step inside, the vaulted ceiling in the living and dining areas dramatically expands the visual volume of the home. With a peak height of approximately 14’-8½”, this small footprint feels open, airy, and inviting — perfect for a primary residence, guest house, vacation cabin, or backyard ADU.

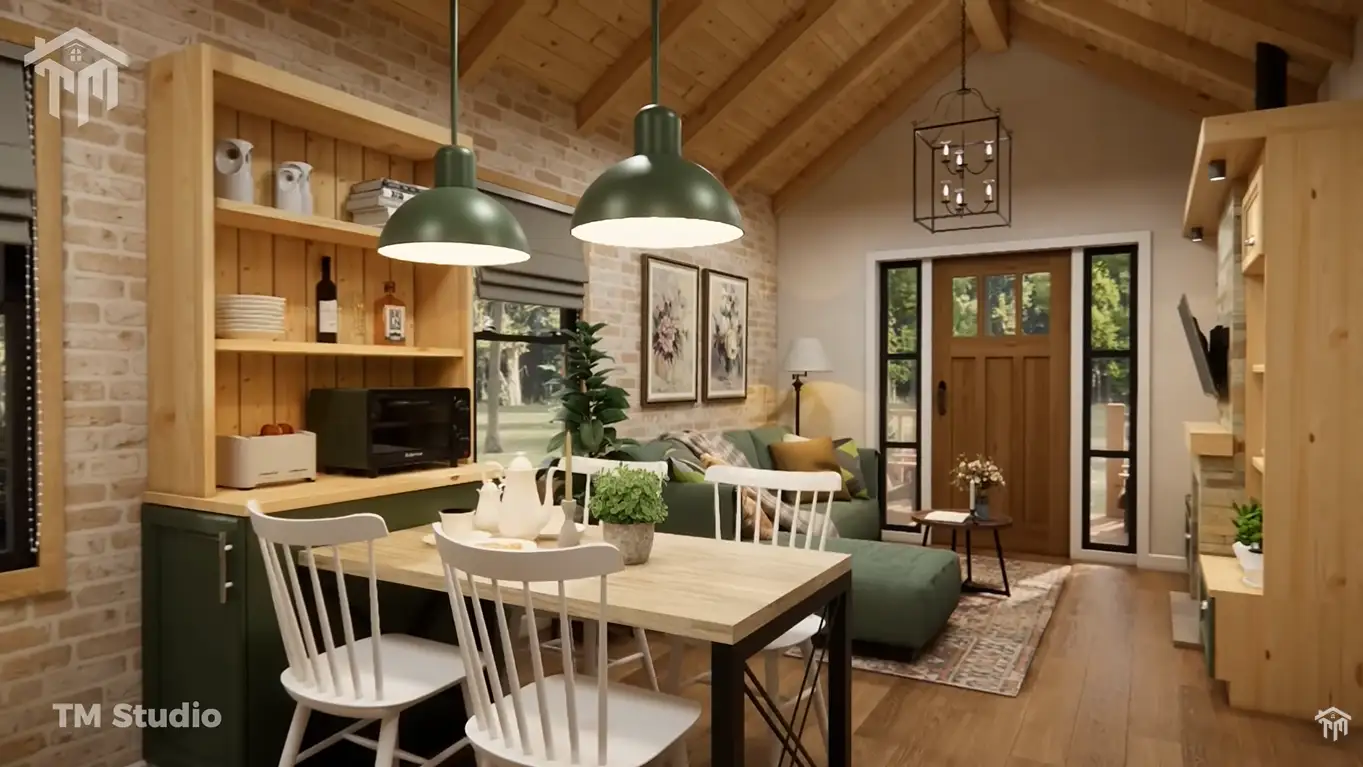

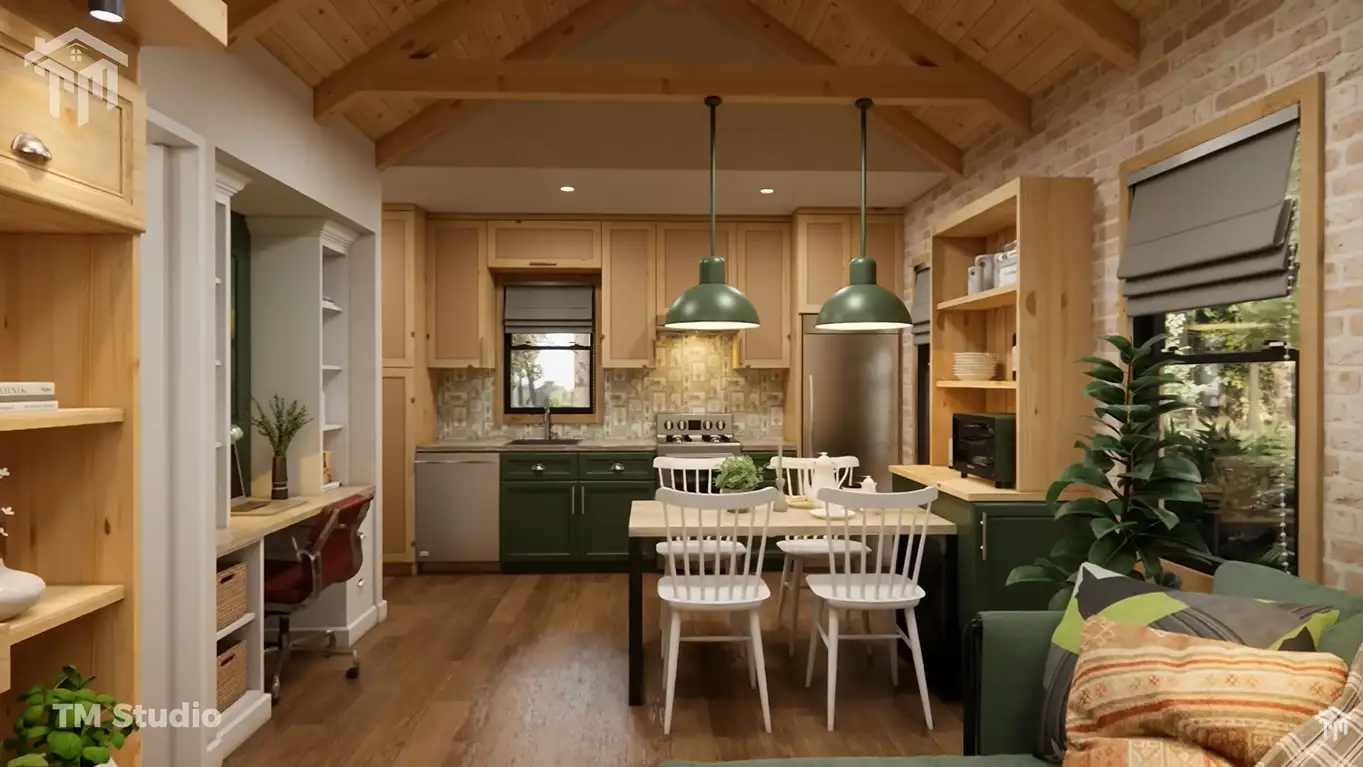

The open-concept living area flows directly into a well-designed 10’ x 10’ kitchen, offering full cabinetry walls, appliance space, and practical workflow. The adjacent dining area is positioned to take advantage of natural light and open sightlines.

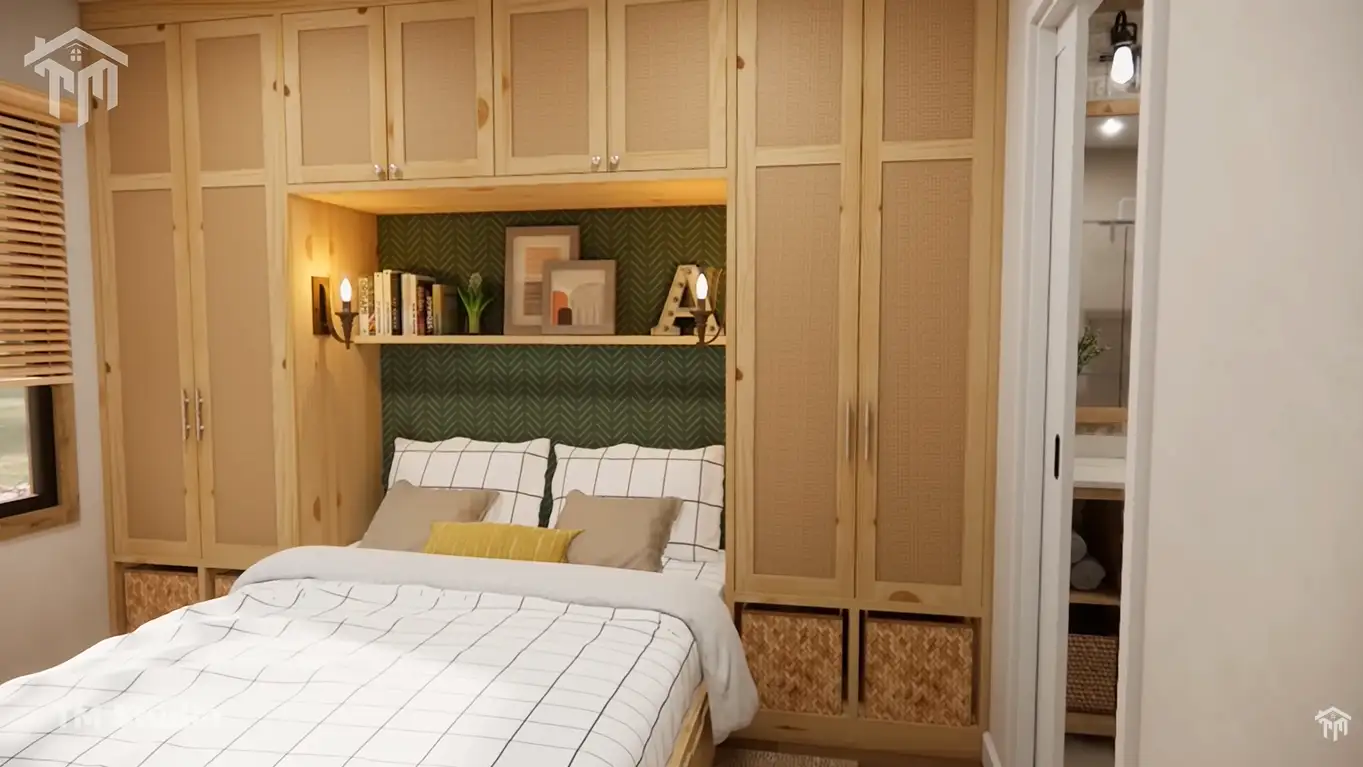

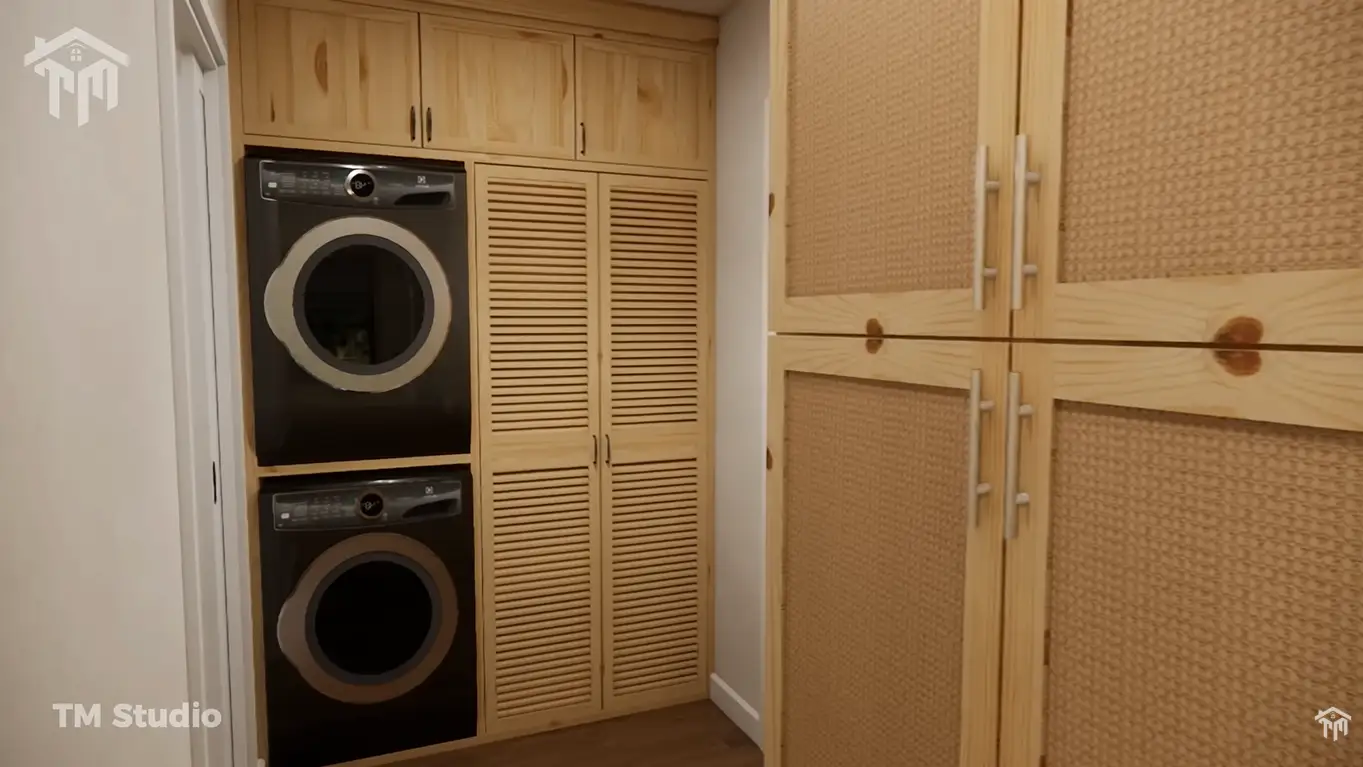

The private bedroom features a 10-foot ceiling height, creating comfort and vertical openness rarely found in homes of this size. A full 60 sq ft bathroom provides a standard tub/shower configuration, while a separate dedicated laundry room adds everyday functionality.

Built on a crawlspace foundation with durable 2×6 exterior framing and 2×4 interior framing, this home meets common US residential construction standards. The 8:12 roof pitch enhances both curb appeal and interior ceiling height.

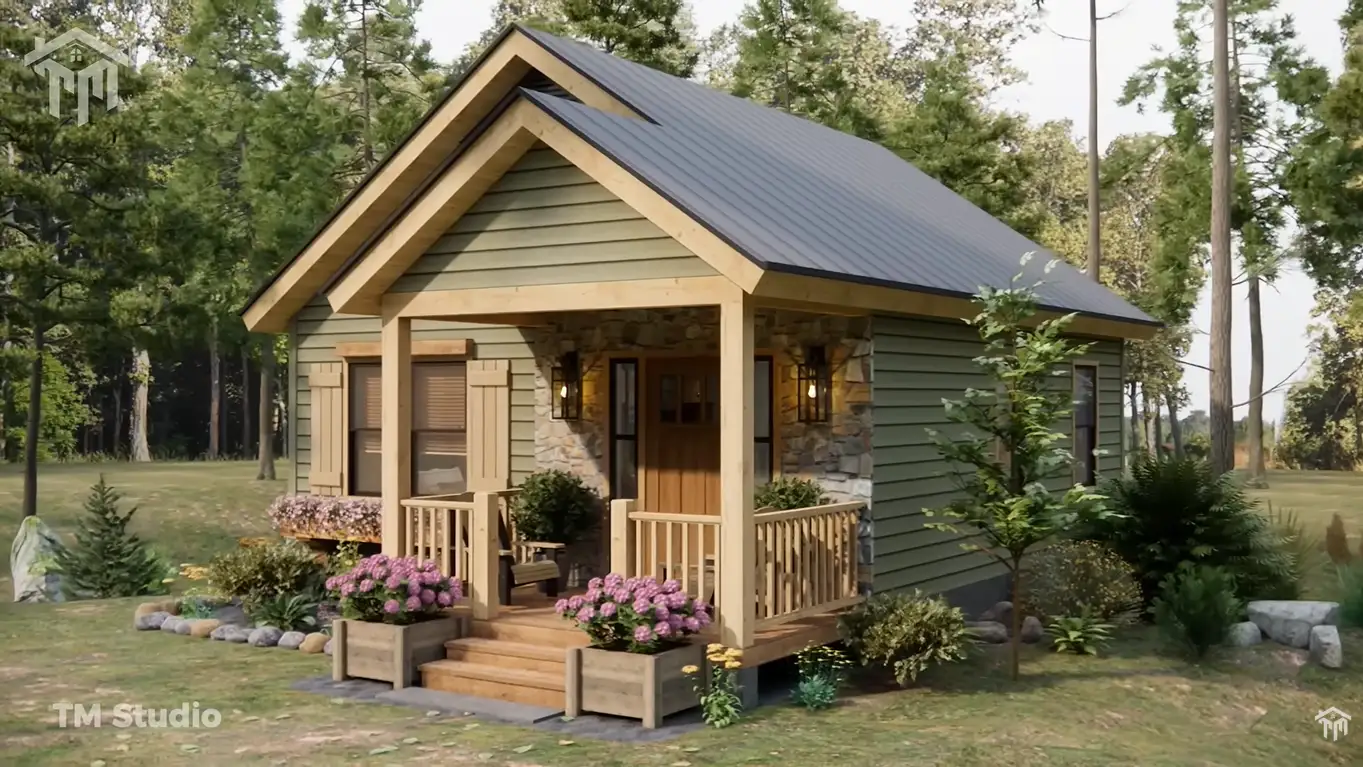

Outside, dual decks totaling 154 sq ft extend your living space outdoors — ideal for entertaining, relaxing, or placing outdoor furniture in wooded, rural, or lakeside settings.

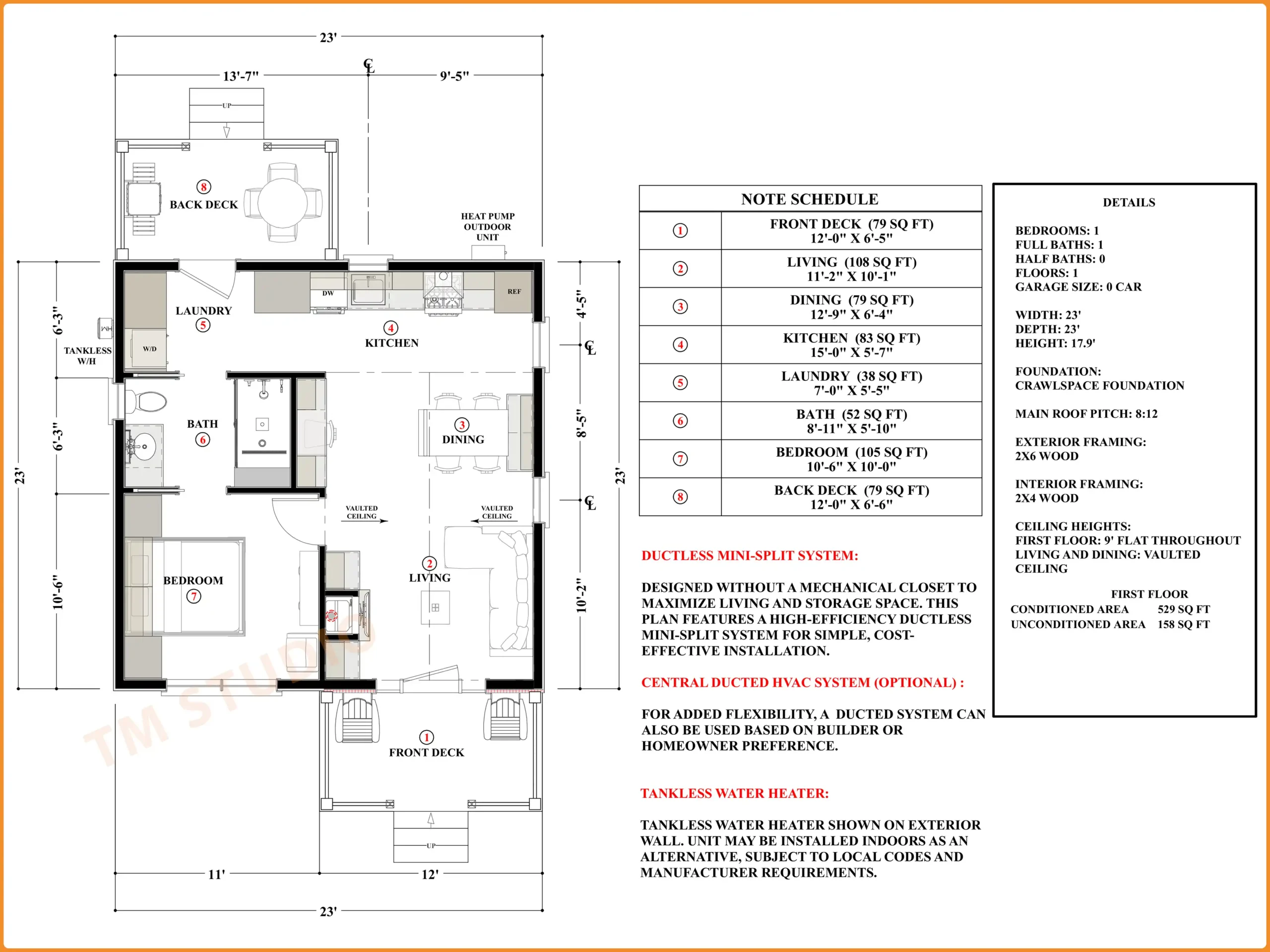

📐 Technical Specifications

• Floor Plan Number: TMS-047-CF1

• Overall Dimensions: 23’ Width x 23’ Depth

• Total Conditioned Area: 528 Sq Ft

• Livable Area: 522 Sq Ft

• Unconditioned Area: 154 Sq Ft (Decks)

• Total Coverage: 682 Sq Ft

• Foundation: Crawlspace Foundation

• Main Roof Pitch: 8:12

• Exterior Framing: 2×6 Wood

• Interior Framing: 2×4 Wood

• Ceiling Height (Standard Areas): 10 Feet

• Vaulted Ceiling Height (Living/Kitchen/Dining): Up to 14’-8½”

• Lot Size Example: 0.11 Acre

• Garage: None

With a total coverage of 682 sq ft and efficient use of every inch, the TMS-047-CF1 is perfect for:

• First-time homeowners

• Downsizers

• ADU builders

• Cabin or vacation home buyers

• Rental investment properties

• Small lot construction projects

If you’re looking for a modern small cottage floor plan with vaulted ceilings and laundry, this design balances charm, structure, and smart planning beautifully.
